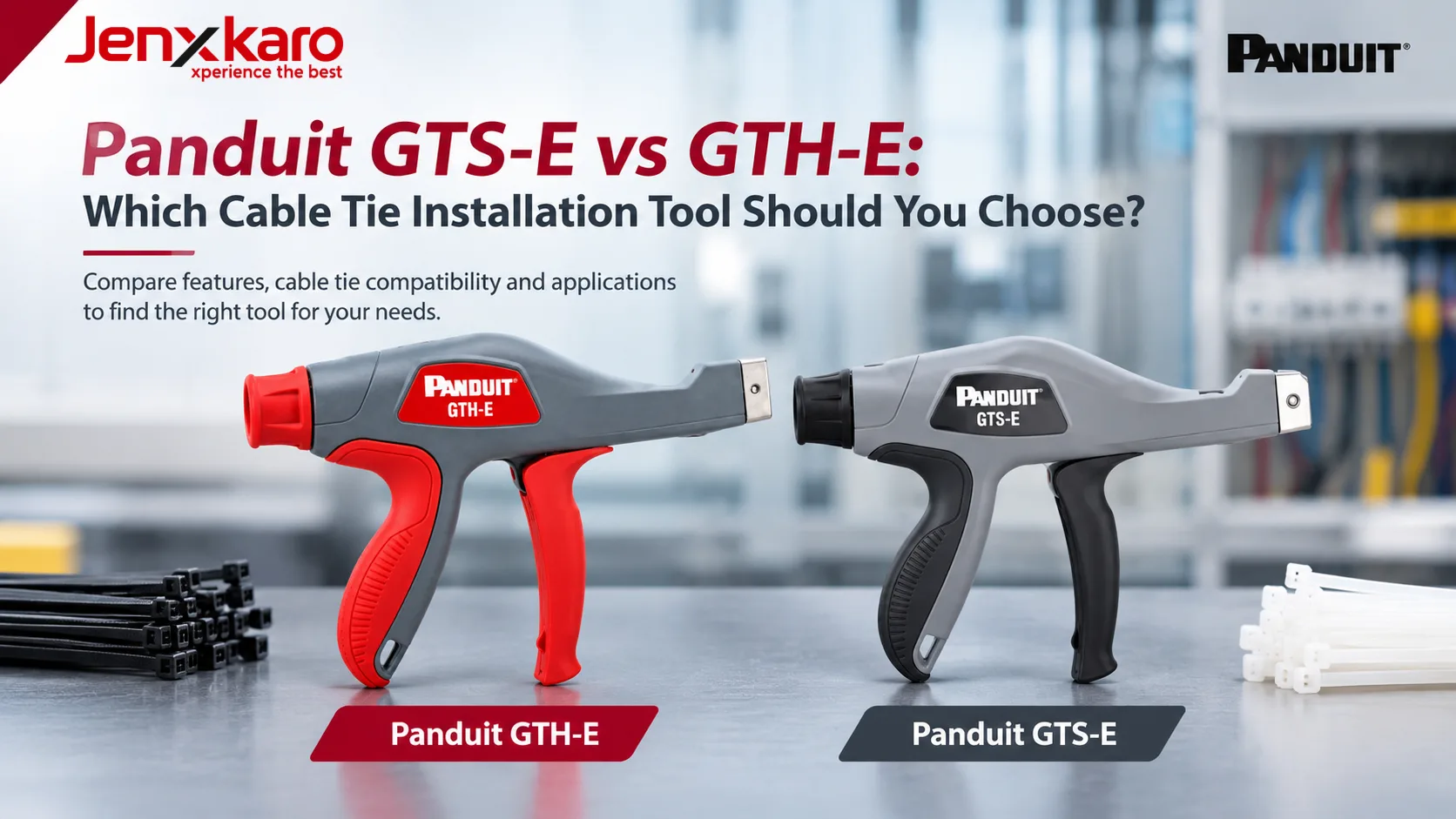

Panduit GTS-E vs GTH-E: Which Cable Tie Gun Should You Choose?

Cable ties are widely used in electrical panels, automotive wiring harnesses, industrial machinery, data centers and manufacturing facilities. However, achieving consistent cable tie tension and a clean cut is just as important as selecting the right cable tie.

Quick Answer: What Is the Difference Between Panduit GTS-E and GTH-E?

The primary difference is the range of cable tie cross-sections each tool is designed to install.

• Panduit GTS-E: Designed for subminiature, miniature, intermediate and standard cross-section cable ties. Generally used for the cable tie width range between 2mm to 4.8 mm
• Panduit GTH-E: Designed for standard, heavy-standard, light-heavy and heavy cross-section cable ties. Generally used for the cable tie width range between 4.8 mm to 7.6 mm

What Is Panduit GTS-E Cable Tie Installation Tool?

The Panduit GTS-E is a manually operated, ergonomic tool designed for installing smaller cross-section cable ties through standard cross-section ties.

Key features of the GTS-E

1. Compatibility with smaller cable tie cross-sections

• The GTS-E is intended for subminiature, miniature, intermediate and standard cross-section Panduit cable ties.

2. Adjustable tension settings

• The tool allows the operator to select a suitable tension setting for the compatible cable tie.

3. Ergonomic design

• Its handle and grip are designed to support comfortable operation during repetitive installation work.

4. Controlled cable tie cut-off

• The tool incorporates a cut-off mechanism designed to cut the excess cable tie tail.

What Is the Panduit GTH-E Cable Tie Installation Tool?

The Panduit GTH-E is another manually operated ergonomic cable tie installation tool, intended for standard through heavy cross-section cable ties.

Key features of the GTH-E

1. Compatibility with heavier cable tie cross-sections

• The Panduit GTH-E is designed for standard, heavy-standard, light-heavy and heavy cross-section cable ties.

2. Adjustable tension control

• The tool provides adjustable tension settings, helping operators select for the cable tie being installed.

3. Ergonomic handle design

• The ergonomic design is intended to improve handling comfort during repetitive cable tie installation.

4. Integrated cut-off mechanism

• The tool cuts the excess tail after the tie has been tightened to the selected setting.

Where can the GTS-E & GTH-E be used?

•

  Industrial electrical installations

• Machinery and equipment wiring
• Automotive and industrial harness assembly
• Electrical cabinet and switchgear wiring
• Industrial maintenance and cable bundling
• Data centers
• Wiring harness industry

Panduit GTS-E vs GTH-E: Key Differences

Which Cable tie gun Should You Choose?

The most practical way to choose between the Panduit GTS-E and GTH-E is to begin with the cable tie you intend to install.

Choose the GTS-E when:

• Your application uses compatible subminiature, miniature or intermediate cross-section cable ties.
• Your installation work primarily involves smaller cable ties through the standard cross-section range.
• You need a manual tool for repetitive wire bundling or assembly work.
• Generally used for the cable tie width range between 2mm to 4.8 mm

Choose the GTH-E when:

• Your application requires compatible heavy-standard, light-heavy or heavy cross-section cable ties.
• You regularly install heavier cable ties in industrial or manufacturing environments.
• Your required cable tie falls within the GTH-E compatibility range specified by Panduit.
• Generally used for the cable tie width range between 4.8 mm to 7.6 mm
